Material that performs under all conditions
High-performance films at NOWOFOL
Where conventional materials reach their limits, NOWOFOL’s strength begins. Our high-performance films have been developed for applications where extreme temperatures, aggressive chemicals and continuous mechanical stress are part of everyday operations.
Whether in aerospace, medical technology or demanding industrial applications: with our high-performance films, you benefit from exceptional material performance, long service life and high process reliability.
Overview
Alexander Dill
„Our customers need films that perform reliably even under very demanding conditions. That is precisely why every detail of the process was carefully optimized during the development of NOWOCAST PEEK, PPSU, and PEI. The result is high-performance films that offer our customers greater reliability in their processes.“
Alexander Dill
„Our customers need films that perform reliably even under very demanding conditions. That is precisely why every detail of the process was carefully optimized during the development of NOWOCAST PEEK, PPSU, and PEI. The result is high-performance films that offer our customers greater reliability in their processes.“
NOWOCAST PEEK
Maximum performance for the most demanding applications
NOWOCAST PEEK is made from the raw material polyetheretherketone (PEEK), a high-temperature-resistant, semi-crystalline thermoplastic. It is one of the highest-performing thermoplastics, which means NOWOCAST PEEK can be used in particularly demanding applications.
Properties:
- Temperature resistance up to 250° C
- High strength and rigidity
- Excellent chemical resistance
- Very good wear and abrasion resistance
Applications
- Aerospace
- Medical technology
- Automotive engineering
- Electronics for high-performance components
Thickness
< 10 – 500 µm (0.4 – 20 mil)
Manufacturing
Surface: Glossy
Treatment: Corona
Width
up to 750 mm
NOWOCAST PPSU
Extreme robustness and mechanical strength
Polyphenylsulfone (PPSU) combines exceptional impact strength with high hydrolysis resistance, making it ideal for applications that come into contact with moisture and radiation.
Properties:
- High temperature resistance up to 180° C
- High impact strength
- Excellent chemical resistance
- Radiation resistant
- Heat resistant
- Flame retardant
Applications
- Automotive
- Aerospace
- Medical technology
- Food technology
Thickness
25 – 500 µm (1 – 20 mil)
Manufacturing
Surface: Glossy
Treatment: Corona
Width
up to 750 mm

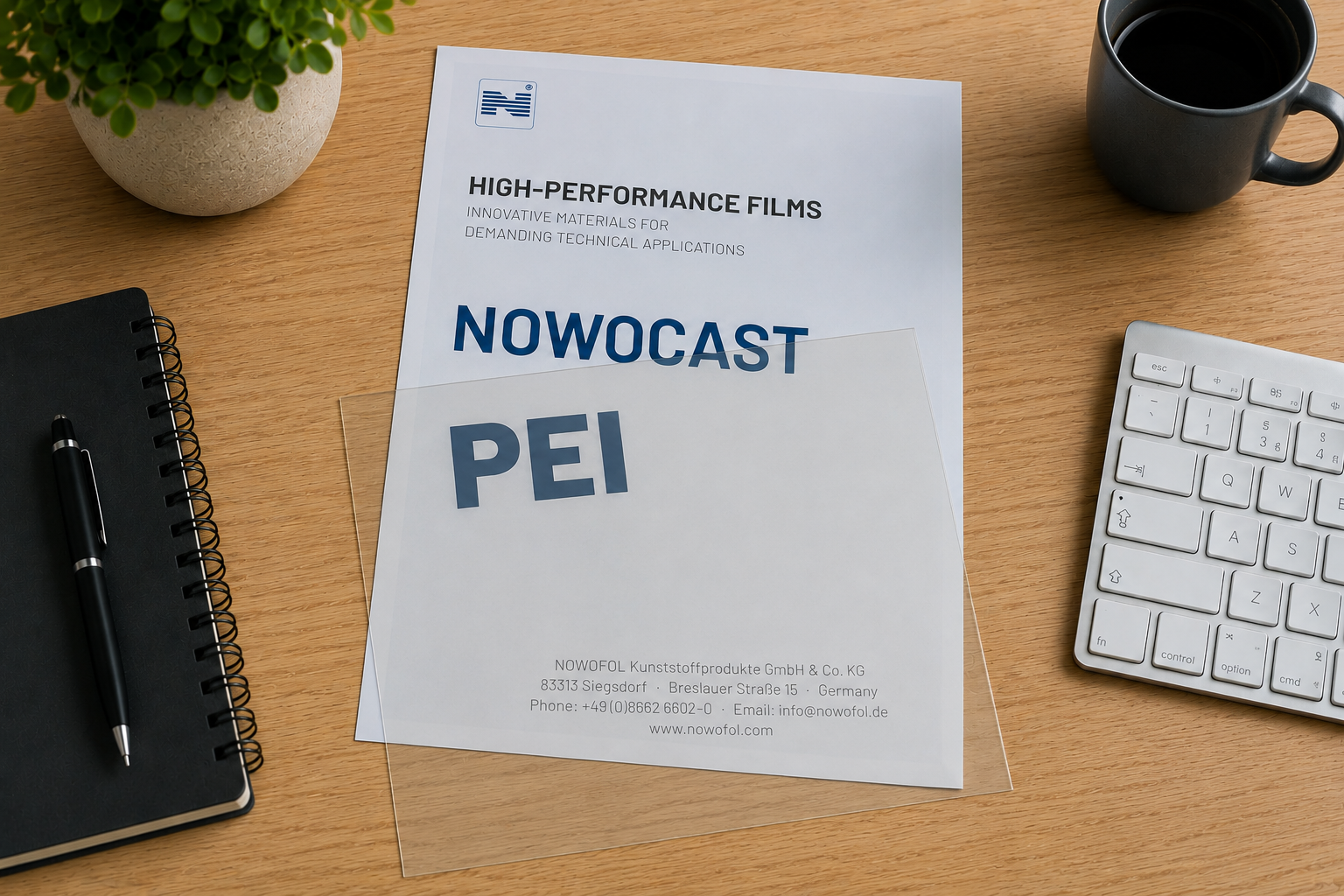

NOWOCAST PEI
Precision and safety for technically demanding solutions
Polyetherimide (PEI) is an amorphous raw material with exceptional mechanical, electrical and dimensional stability properties.
Properties:
- High temperature resistance up to 200° C
- High strength and rigidity
- Excellent chemical resistance
- UV-C resistant
- SFlame retardant
Applications
- Automotive
- Aerospace
- Medical technology
- Electronics
- 3D printing
- Building construction
Thickness
25 – 500 µm (1 – 20 mil)
Manufacturing
Surface: Glossy
Treatment: Corona
Width
up to 750 mm
Good to know
Our high-performance films are PFAS-free, making them a very good alternative for applications that aim to avoid fluoropolymers.
For more information about our solutions, data sheets or samples, please contact Alexander Dill at any time:
